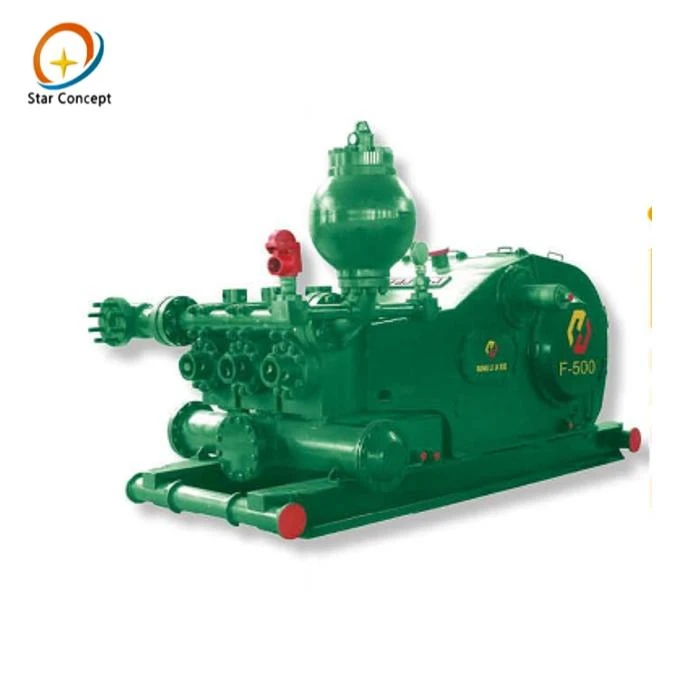

Mud Pump
A mud pump is a machine used to transport drilling fluid (mud) in drilling operations, and is suitable for oil, natural gas, and geological exploration drilling.
Product Features
High Wear Resistance
The pump body and piston of the mud pump are made of high-chromium alloy steel, which can withstand long-term mud erosion, extending the pump body's lifespan to over 5 years.
High-Pressure Delivery
The mud pump can withstand a maximum working pressure of 35 MPa, ensuring stable mud delivery under deep well conditions.
High Efficiency
The displacement can reach 500 L/min, ensuring efficient drilling fluid circulation.
Main Technical Parameter
|
Item |
F500 |
F800 |
F1000 |
F1300 |

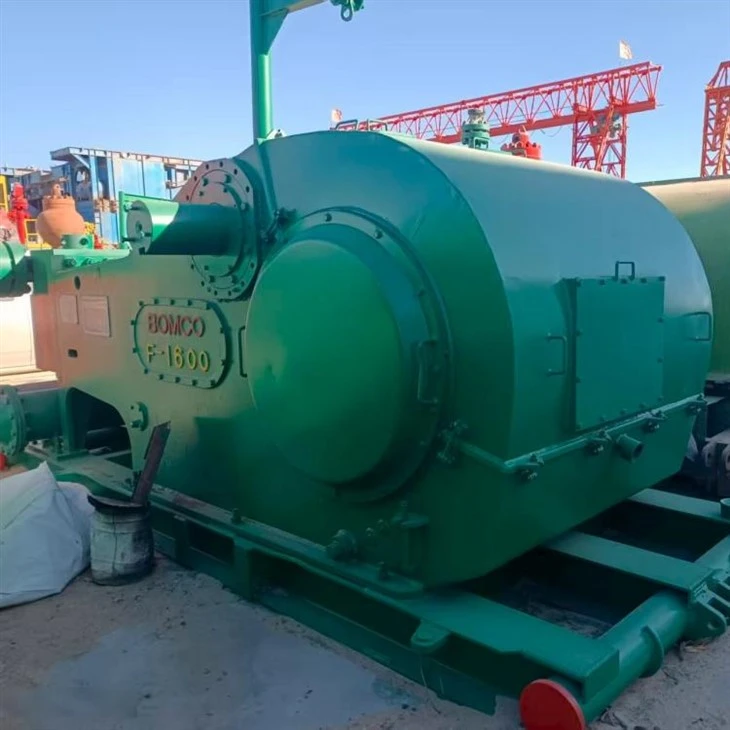

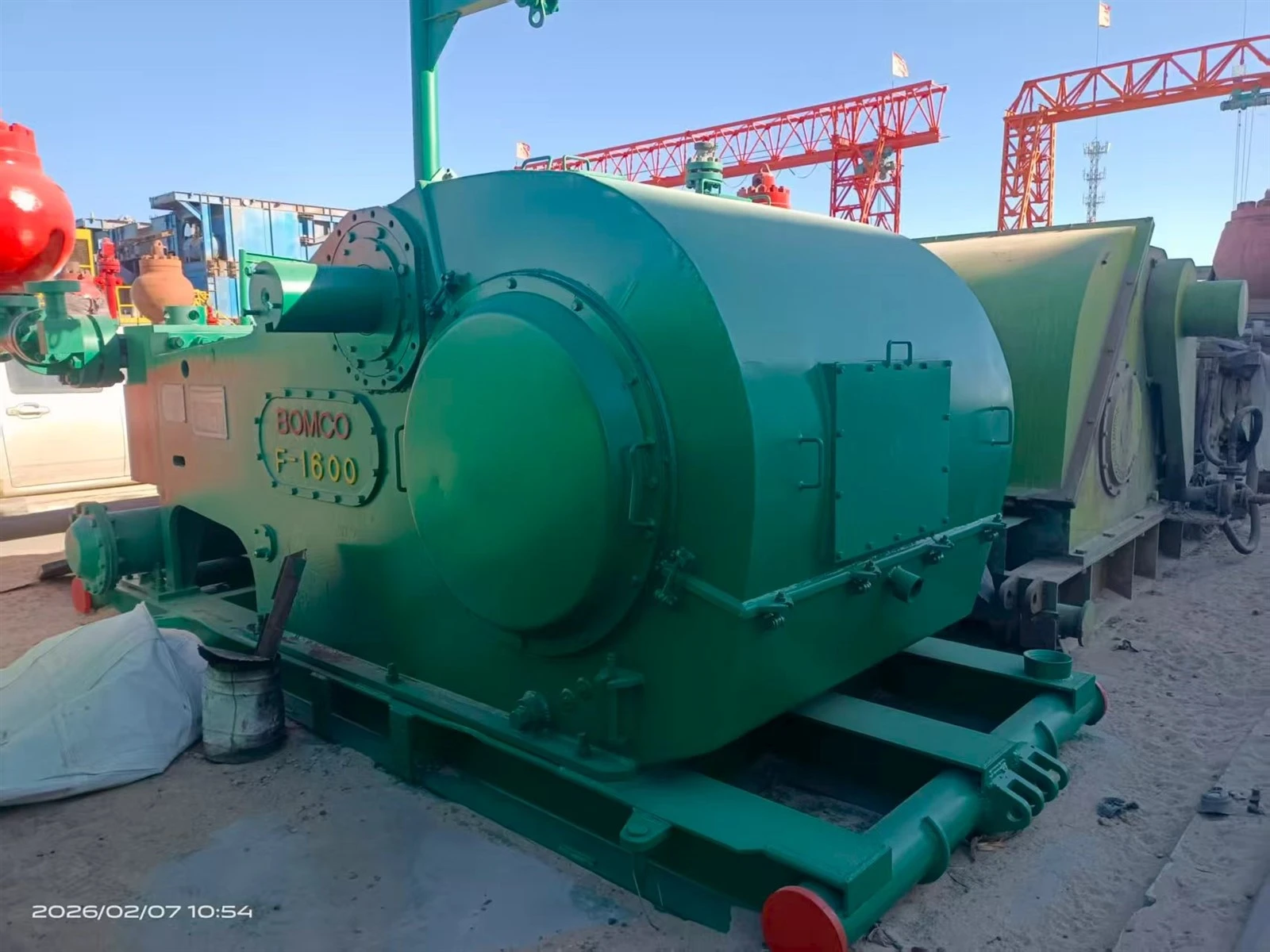

F1600 |
F2200 |
|
Power Rating Hp (Kw) |
500(373) |
800(597) |
1000(746) |
1300(969) |
1600(1193) |
2200(1618) |
|
Stroke Rating Spm |
165 |
150 |
140 |
120 |
120 |
105 |
|
Stroke Length |
7.5''/190.5 |
9''/228.6 |
10''/254 |
12''/305 |
12''/305 |
356 |
|
Gear Radio |
4.286 |
4.185 |
4.207 |
4.206 |
4.206 |
3.512 |
|
Inlet Dia (In/Mm) |
8''/203 |
10''/254 |
12''/305 |
12''/305 |
12''/305 |
305 |
|
Outlet Dia(In) |
4'' Flange 5000psi |
5-1/8'' Flange 5000psi |
5-1/8'' Flange 5000psi |
5-1/8'' Flange 5000psi |
5-1/8'' Flange 5000psi |
130 |
|
Valve |
Api5# |
Api6# |
Api6# |
Api7# |
Api7# |
8# |
|
Max.Liner(In/Mm) |
6-3/4''/170 |
6-3/4''/170 |
6-3/4''/170 |
7''/180 |
7''/180 |
¢140-230 |
|
Overall Dimension |
3658*2709*2231 |
3963*3025*2410 |
4267*3167*2580 |
4617*3260*2600 |
4615*3276*2688 |
6000*3465*2746 |
|
Approx Weight |
9770 |
14500 |
18790 |
24572 |
24791 |
38800 |
Why We Are the Leading Manufacturer of Mud Pump
Efficient Heat Treatment
A combination of various heat treatment equipment (forklifts, mesh belt furnaces, pit furnaces, and high/medium frequency quenching) with an annual processing capacity of 16,000 tons.
Extensive Experience
With over 20 years of experience in the production and supply of oil and gas drilling, cementing, and fracturing equipment, we are a professional and reliable partner in the industry.
Professional Service
We provide technical consulting, installation guidance, on-site training, long-term technical support, and spare parts supply, ensuring worry-free operation for our customers.
Advanced Equipment
Equipped with over 200 high-precision CNC machines and six intelligent automated processing lines, ensuring part accuracy and production efficiency.
Frequently Asked Questions
Q: What is the working principle of a mud pump?
A: The mud pump uses the reciprocating motion of a piston to draw in drilling fluid and deliver it under high pressure to the drill bit, enabling continuous circulation.
Q: What drilling operations is it suitable for?
A: It is suitable for oil, natural gas, and geological exploration drilling, and can handle various drilling fluids.
Q: Is the flow rate adjustable?
A: Yes. Precise flow rate control can be achieved by adjusting the pump speed and discharge valve.
Q: Does it have a long maintenance cycle?
A: Key components are easily removable, extending the maintenance cycle to more than six months.
Q: Are there any restrictions on the installation position?
A: It can be installed horizontally or slightly inclined, adapting to the drilling rig layout.
